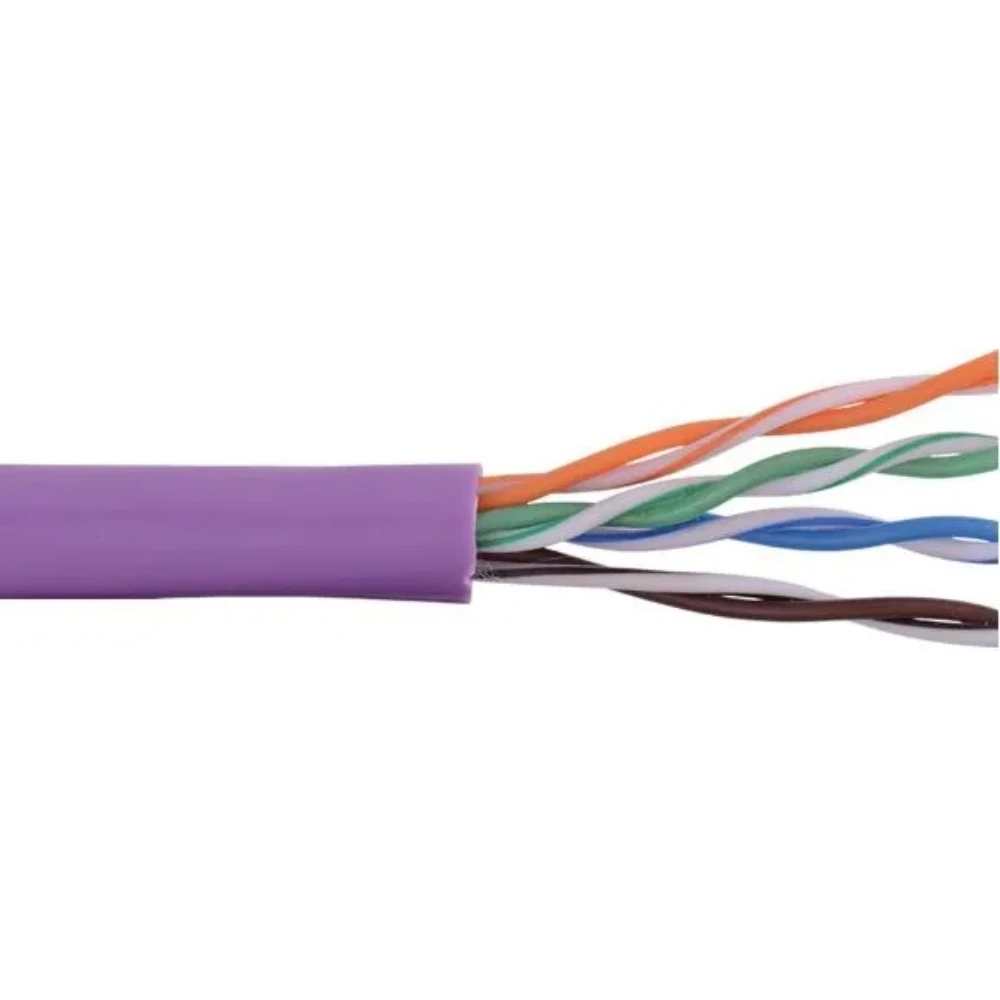

Category 5e Copper Cable:
– U/UTP design for reliable connectivity
– Supports frequencies up to 350MHz
– LSZH flame retardant options for safety
– Durable length markings reduce cable waste






| Category | 5e |
| Cable Type | U/UTP (Unshielded) |
| Conductor | 23AWG, Solid Bare Copper |
| Insulation | HDPE |
| Pairs Quantity | 4 |
| Outer Sheath | CM, CMR, LSZH, PE, PVC |
| Outer Diameter | 5.1±0.3mm |
| Operating Temperature Range | – 20°C ~+60°C |
| Standard Compliance | ISO/IEC 11801
ANSI/TIA.EIA-568.2-D IEC 61156-5 EN 50399 EN 50173-1 |





| Category | 5e |
| Cable Type | U/UTP (Unshielded) |
| Conductor | 23AWG, Solid Bare Copper |
| Insulation | HDPE |
| Pairs Quantity | 4 |
| Outer Sheath | CM, CMR, LSZH, PE, PVC |
| Outer Diameter | 5.1±0.3mm |
| Operating Temperature Range | – 20°C ~+60°C |
| Standard Compliance | ISO/IEC 11801
ANSI/TIA.EIA-568.2-D IEC 61156-5 EN 50399 EN 50173-1 |
