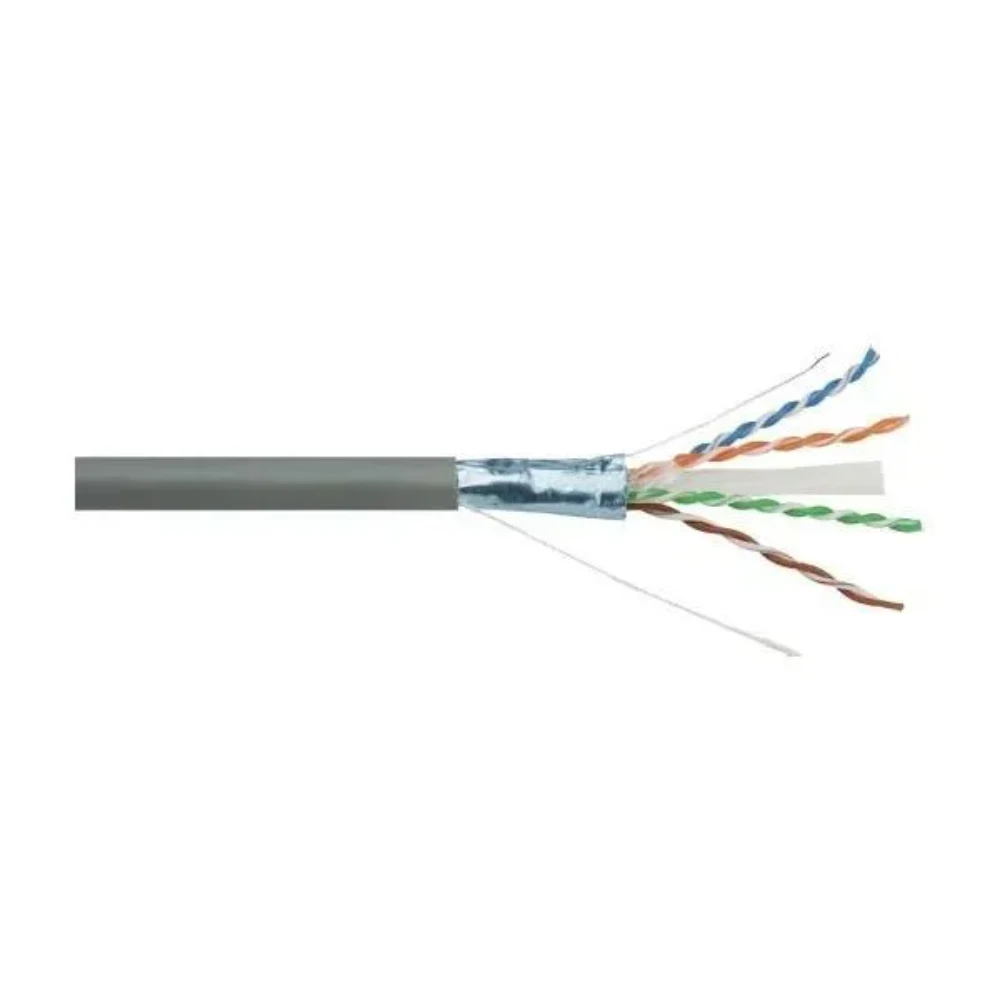

Category 6 Copper Cable:
– F/UTP design with cross filler for better performance
– Aluminum foil shielded for reduced interference
– Supports frequencies up to 550MHz
– Durable length markings reduce cable waste.
Category | 6 |
Cable Type | F/UTP (Shielded) |
Conductor | 23AWG, Solid Bare Copper |
Insulation | HDPE |
Pairs Quantity | 4 |
Outer Sheath | CM, CMR, LSZH, PE, PVC |
Outer Diameter | 7.4±0.3mm |
Operating Temperature Range | – 20°C ~+60°C |
Standard Compliance | ISO/IEC 11801 ANSI/TIA.EIA-568.2-D IEC 61156-5 EN 50399 EN 50173-1 |
Category | 6 |
Cable Type | F/UTP (Shielded) |
Conductor | 23AWG, Solid Bare Copper |
Insulation | HDPE |
Pairs Quantity | 4 |
Outer Sheath | CM, CMR, LSZH, PE, PVC |
Outer Diameter | 7.4±0.3mm |
Operating Temperature Range | – 20°C ~+60°C |
Standard Compliance | ISO/IEC 11801 ANSI/TIA.EIA-568.2-D IEC 61156-5 EN 50399 EN 50173-1 |
